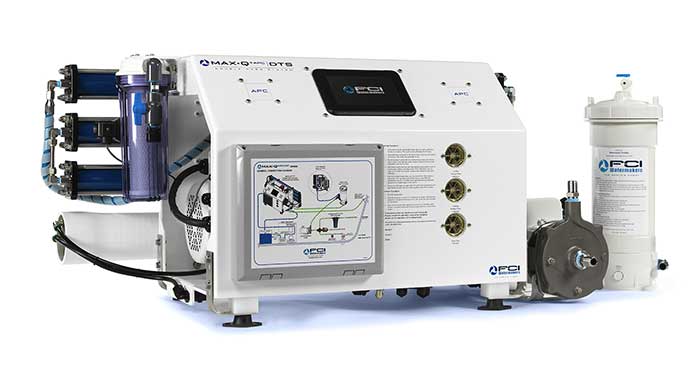

FCI Max Q+ APC/DTS Double-Pass Framed Watermaker

The industry's most dependable watermaker and spot-free Dockside Treatment System (DTS), in one compact framed unit. The all-inclusive Max Q+ APC/DTS saves up to 40% on initial equipment cost and 50% less on installation cost of multiple components.

FCI brings you the first all-in-one fully automated, self-adjusting system, thanks to Automatic Pressure Control (APC) valving, automated source water valve selection, and the industry's only marine-certified hi-res touch screen panel.

3 Modes of Operation

• Seawater Mode — Seawater to purified drinking water
• Double-Pass Mode — Seawater to spot-free water
• Dockside Mode — Municipal water to spot-free water

Key Features

• Spot-free water from seawater or dockside water
• 3-in-1 system saves up to 40% in equipment cost and 50% on installation
• Fully automated in all 3 modes of operation
• Auto-adjusts to global feed water conditions
• Marine-certified 7" Display with intuitive HMI Control System — one touch operation
• NEMA 4X Rated V4 Control Valving and Protection
• Noise-dampening 4-point Vibration Isolation Mounts
• 316 Stainless Steel High Pressure Pump (continuous duty)
• TEFC continuous-duty washdown rated motors with 316SS shaft
• GAC Filter included as standard
• 40 sq. ft. pleated Pre-Filter with pressure monitoring and alarming
• Automated source water valve — true one-touch operation
• Automated Fresh Water Flush schedulable via V4 Control
• FDA/NSF-51 fittings on product water

Electrical

2.5 HP | 2.24 KW | 120 / 208-240 / 380 / 480 VAC | 50/60 Hz | 1 or 3 Phase

System Operating Conditions

• Sea Water: 77°F / 25°C | TDS 32,000 | Pressure 825 PSI
• Dock Water: 77°F / 25°C | TDS 500 | Pressure 125 PSI
• Dock Water Conversion: Up to 1,000 PPM | Chlorine Tolerance > 0.1

Model Specifications

Pricing subject to change without notice. For more information, please contact us.
